Frame Mounting Bolt Allan/Hex M6 L17mm pcs

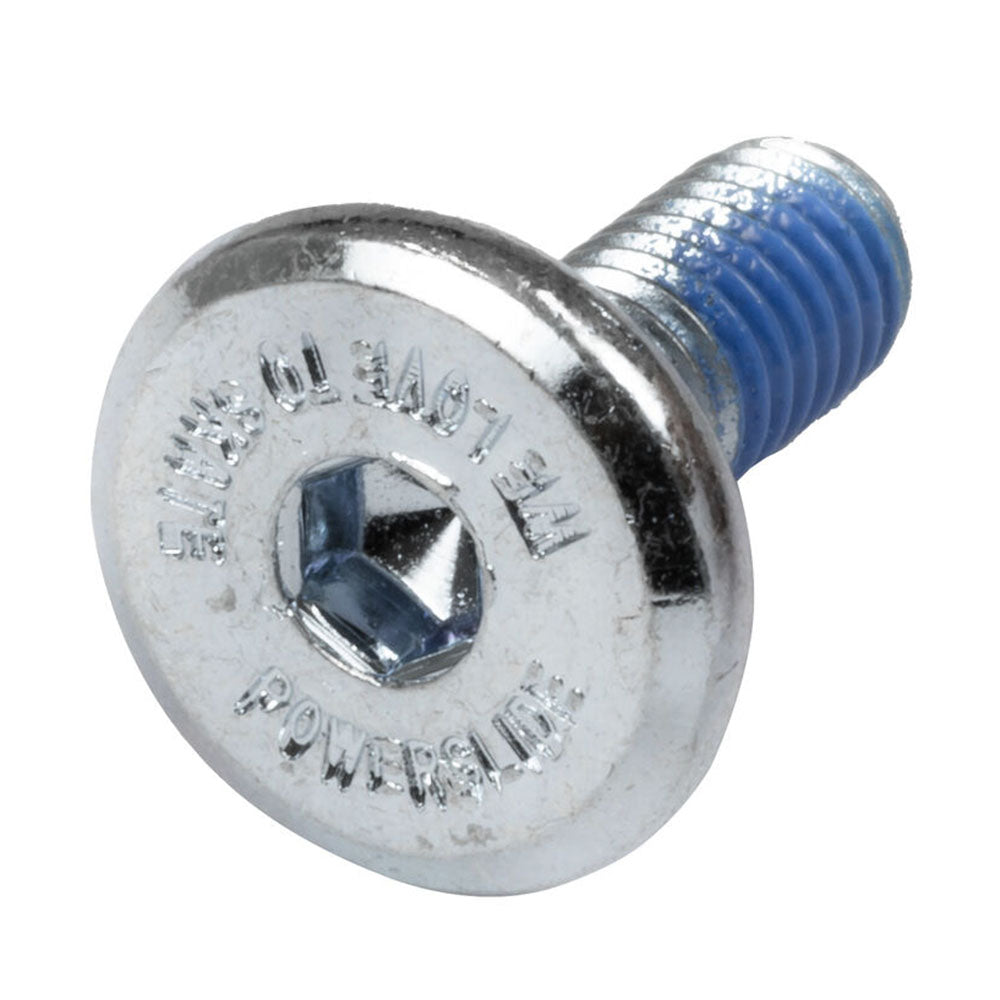

The Torx mounting screw can be used for the assembly of frames to your skates. The screw is made of high-grade steel featuring a 4mm hex head as well as M6 standard threads. Make sure it´s the correct length for your skates.

The frame is the bottom of a skate that holds the wheels. It is mounted to the boots with 2 or 3 bolts. There are a couple of different mounting types, Learn more about these here:
https://www.thisissoul.com/blogs/buyers-guide/everything-about-frame-mounting

All skates (except those from the Fila or Seba brand) use M6 thread. This means the thread has an outer diameter of 6mm.

If your frame mounting bolts are too short, then you might end up with a missing bolt after a few sessions. Bolts might unscrew because of the vibrations. This happens quicker if you scre, and unscrew your bolt allot. Doing this causes the blue paint drip that was on your bolt when it was new to disappear. This can be easily reapplied by getting some Loctite, find it at the maintenance section of our webshop.

Be aware of frame mounting bolts that are too long, The bolts will stick out in the boot and pierce your liner and your foot.
Measure the length of one of your current bolts to know what length you need, if you have any questions about this, then just send us a photo of your skate and frame setup so that we can give you free advice.

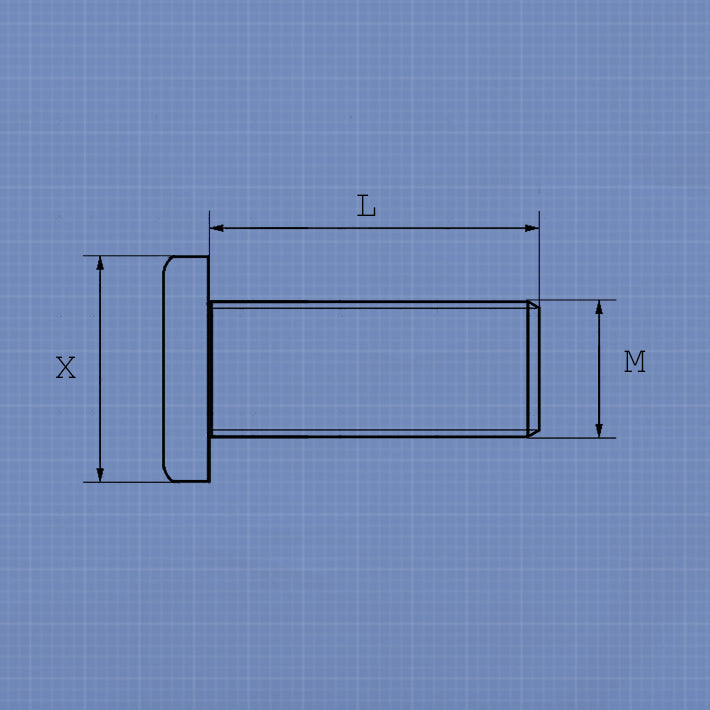

M = 6mm

L = 17mm

X = 15mm

Sold per piece
